Innovative gas and flame detection solutionsDräger paves the way for you to achieve "Zero Accidents", shorter downtimes, faster alarm systems and professional emergency management.

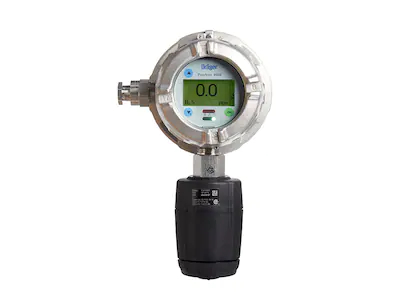

The Polytron® 8100 EC is Dräger’s top of the line explosion-proof transmitter for the detection of toxic gases or oxygen. It uses a high performance plug and play electrochemical DrägerSensor to detect a specific gas. Besides having a 3-wire 4 to 20 mA analog output with relays, it also offers HART®, Modbus and Fieldbus protocol, making it compatible with most control systems.

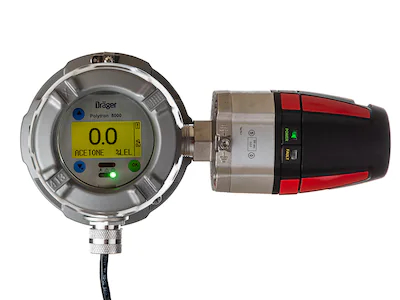

The Dräger Polytron® 8700 IR is an advanced explosion proof transmitter for the detection of hydrocarbon gases in the lower explosion limit (LEL) and ppm. It uses a high performance infrared Dräger PIR 7000 sensor, which will quickly detect most common hydrocarbon gases. Besides a 3 wire 4 to 20 mA analog output with relays, it also offers HART®, Modbus, and Fieldbus making it compatible with most control systems.

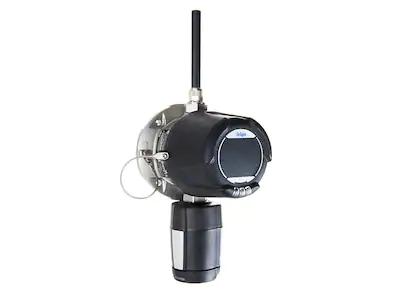

The Dräger Polytron 6100 EC WL is a wireless transmitter for continuous monitoring of toxic gases and oxygen. The intrinsically safe and SIL2-rated transmitter features completely wireless signal transmission using either ISA100 or Wireless HART and with battery or 24 VDC wired power supply. The internal battery pack allows the transmitter to operate continuously for up to 24 months making the Polytron 6100 a flexible and cost-efficient solution for plant expansions, upgrades or new installations.

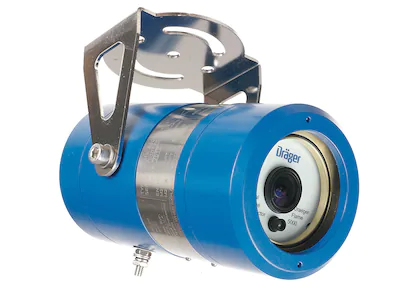

Flame detection on the basis of a live video signal. Using a color video signal, the Dräger Flame 5000 detects characteristic properties of flames by means of its digital signal processing and software algorithmics. The Dräger Flame 5000 is approved for use in explosion-hazard areas according to ATEX, IECEx and FM/CFM.

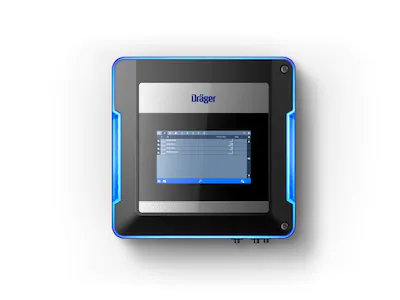

Monitor various gases and vapors with the modular Dräger REGARD 3000 control system. Its multi-colored light signals the status of your gas detection system. The controller allows for up to three I/O modules: Analog Input, Relay Output, and Modbus Gateway. You can monitor up to 4 analog transmitters and control up to 8 relays.

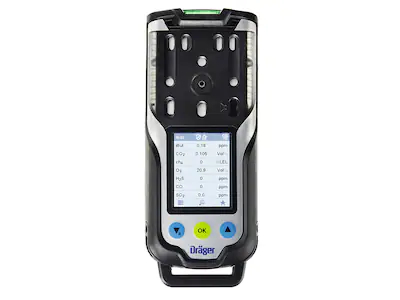

Clearance measurement was never this easy and convenient: The 1 to 7 gas detector detects toxic and flammable gases as well as vapors and oxygen all at once – either in pump or diffusion mode. Innovative signaling design and handy assistant functions ensure complete safety throughout the process.
